Overview

Argyle’s income and employment verification reports provide lenders an automated way to achieve:
Reach out to your Customer Success Manager to enable Argyle’s Day 1 Certainty and AIM functionality.
  1. Borrowers connect their payroll accounts through Argyle.
  2. Argyle generates verification reports from the borrowers’ payroll data.
  3. Lenders submit the reference number listed on Argyle’s verification reports to Fannie Mae’s DU validation service and/or Freddie Mac’s Loan Product Advisor® (LPASM℠) along with the loan casefiles.
Fannie Mae and Freddie Mac will automatically receive a copy of Argyle’s verification reports and the underlying income and employment data. After the information is validated, Day 1 Certainty and AIM eligibility will be delivered for eligible loans.

​
Console

​
Generating verification reports

  1. After a borrower has connected their payroll account(s), go to the Connections section of Console.
  2. Select the individual borrower from the Connections table.
  3. Select Generate report.
Select a report type.

​
Locating reference numbers

A Reference # will be listed at the top of Argyle’s verification report that can be submitted to Fannie Mae for Day 1 Certainty® and Freddie Mac for AIM eligibility determinations. The reference number will be listed at the top of the report.

​
API

​
Webhooks

Argyle provides a reports.ready webhook that will notify you when sufficient data has been retrieved from the borrower’s connected payroll account(s) to generate a verification report. You can subscribe to this webhook via Console, or via the API by sending a POST request to https://api.argyle.com/v2/webhooks. In the API request body, include a JSON object in the following format:
{
    "events": ["reports.ready"],
    "name": "My webhook",
    "url": "https://your-webhook-backend.com",
    "secret": "<secret for signature verification>"     // Optional.
}
The reports.ready webhook’s payload provides a list of the borrower’s payroll accounts that have synced a sufficient amount of data to be used in the report.
The accounts.connected and accounts.failed webhooks can be used to track multiple account connections. Compare them to the accounts listed in the reports.ready webhook payload to determine when to generate a report.
{
    "event": "reports.ready",
    "name": "name-for-the-webhook-subscription",
    "data": {
        "user": "018051aa-f7a9-a0db-2f38-6cfa325e9d69",
        "resource": {
            "user": "018051aa-f7a9-a0db-2f38-6cfa325e9d69",
            "external_id": "March Connection",
            "accounts": [
                {
                    "id": "0185a8b8-60eb-80ca-7482-5f24504573f7",
                    "last_synced_at": "2024-01-08T12:55:04.016Z"
                },
                {
                    "id": "0187c66e-e7e5-811c-b006-2232f00f426a",
                    "last_synced_at": "2024-01-08T12:58:06.023Z"
                }
            ],
            "documents": []
        }
    }
}

​
Requesting verification reports

Send a POST request to the reports endpoint — https://api.argyle.com/v2/reports/voie-mortgage
The report type is specified in the request path — e.g. /voie-mortgage or /voe-mortgage
In the API request body, include a JSON object in the format below:
{
    "user": "018b8255-4ab1-be4b-aa2c-e9ff41d75809"   // ID of the user
}
The initial API response will include the id of the report. After the report is generated, this id can be used to retrieve the report and is also the Reference # that can be submitted to Fannie Mae and/or Freddie Mac.
{
    "id": "e0dbf946-a400-419c-946f-0adc7b5fbe36",   // ID of the report
    "user": "018b8255-4ab1-be4b-aa2c-e9ff41d75809",
    "reference_id": "e0dbf946-a400-419c-946f-0adc7b5fbe36",
    "generated_at": "2024-01-23T20:46:03.254Z",
    "created_at": "2024-01-23T20:46:03.254Z",
    "type": "voie-mortgage",
    "status": "generating",
    "file_url": "www.argyle.com/storagename/pdf",
    "json_url": "www.argyle.com/storagename/json",
    "accounts": [
        {
            "id": "0185a8b8-60eb-80ca-7482-5f24504573f7",
            "item": "item_123456789",
            "last_synced_at": "2024-01-08T12:55:04.016Z"
        },
        {
            "id": "0187c66e-e7e5-811c-b006-2232f00f426a",
            "item": "item_000000001",
            "last_synced_at": "2024-01-08T12:58:06.023Z"
        }
    ],
    "metadata": {},
    "last_synced_at": "2024-01-08T12:58:06.023Z",
    "external_id": "March Connection"
}

​
Retrieving reference numbers

Send a GET request to the reports endpoint — https://api.argyle.com/v2/reports/{id}
Include the id of the report as the path parameter.
The report object returned in the API response will contain:
  • An id field with the Reference # that can be submitted to both Fannie Mae and Freddie Mac.
  • A metadata object containing the eligible accounts and employments (as determined by Fannie Mae and Freddie Mac’s guidelines) that were included in the report.
{
    "id": "e0dbf946-a400-419c-946f-0adc7b5fbe36",         // Reference number
    "user": "018b8255-4ab1-be4b-aa2c-e9ff41d75809",
    "reference_id": "e0dbf946-a400-419c-946f-0adc7b5fbe36",
    "generated_at": "2024-01-23T20:46:03.254Z",
    "created_at": "2024-01-23T20:46:03.254Z",
    "type": "voie-mortgage",
    "status": "generated",
    "file_url": "www.argyle.com/storagename/pdf",
    "json_url": "www.argyle.com/storagename/json",
    "last_synced_at": "2024-01-22T16:44:25.889Z",
    "accounts": [
        {
            "id": "0185a8b8-60eb-80ca-7482-5f24504573f7",
            "item": "item_123456789",
            "last_synced_at": "2024-01-08T12:55:04.016Z"
        },
        {
            "id": "0187c66e-e7e5-811c-b006-2232f00f426a",
            "item": "item_000000001",
            "last_synced_at": "2024-01-08T12:58:06.023Z"
        }
    ],
    "metadata": {
        "d1c_report": {
            "status": "available",
            "accounts": [
                "0185a8b8-60eb-80ca-7482-5f24504573f7",   // D1C eligible account
                "0187c66e-e7e5-811c-b006-2232f00f426a",   // D1C eligible account
            ],
            "employments": [
                "b967118b-7d81-3c1b-bce0-c24d631cf5aa",
                "c235635a-5c55-2b8e-eba5-d99a326ad7ea",
            ]
        },
        "aim_report": {
            "status": "available",
            "accounts": [
                "0185a8b8-60eb-80ca-7482-5f24504573f7",   // AIM eligible account
                "0187c66e-e7e5-811c-b006-2232f00f426a",   // AIM eligible account
            ],
            "employments": [
                "b967118b-7d81-3c1b-bce0-c24d631cf5aa",
                "c235635a-5c55-2b8e-eba5-d99a326ad7ea"
            ]
        }
    },
    "external_id": "March Connection"
}
If the loan is not eligible for Day 1 Certainty and/or AIM, not_available will be shown in the metadata object in the respective area:
"metadata": {
    "d1c_report": {
        "status": "not_available",
        "accounts": [],
        "employments": []
    },
    "aim_report": {
        "status": "not_available",
        "accounts": [],
        "employments": []
    }
}
If you are retrieving a report’s contents in JSON format via the report’s json_url, the report_id field will list the Reference #:
{
    "report_id": "e0dbf946-a400-419c-946f-0adc7b5fbe36", // Reference number
    "type": "voie-mortgage",
    "user_id": "018051aa-f7a9-a0db-2f38-6cfa325e9d69",
    "external_id": "March Connection",
    "created_at": "2024-03-15T18:44:53.830Z",
    "last_synced_at": "2024-01-08T12:58:06.023Z",
    "metadata": {
        "d1c_report": {
            "status": "available",
            "accounts": [
                "0185a8b8-60eb-80ca-7482-5f24504573f7",
                "0187c66e-e7e5-811c-b006-2232f00f426a",
            ],
            "employments": [
                "b967118b-7d81-3c1b-bce0-c24d631cf5aa",
                "c235635a-5c55-2b8e-eba5-d99a326ad7ea",
            ]
        },
        "aim_report": {
            "status": "available",
            "accounts": [
                "0185a8b8-60eb-80ca-7482-5f24504573f7",
                "0187c66e-e7e5-811c-b006-2232f00f426a",
            ],
            "employments": [
                "b967118b-7d81-3c1b-bce0-c24d631cf5aa",
                "c235635a-5c55-2b8e-eba5-d99a326ad7ea"
            ]
        }
    },
    "employments": [
        {
            "employment": "b967118b-7d81-3c1b-bce0-c24d631cf5aa",
            "account": "0185a8b8-60eb-80ca-7482-5f24504573f7",
            "last_synced_at": "2024-01-08T12:55:04.016Z",
            "source": "Worknight",
            "first_name": "Bob",
            "last_name": "Jones",
            "full_name": "Bob Jones",
            "birth_date": "1980-10-10",
            "ssn": "522-09-1191",
            "phone_number": "+18009000010",
            "email": "[email protected]",
            "employee_address": {
                "line1": "342 Fence Rd",
                "line2": null,
                "city": "New York",
                "state": "NY",
                "postal_code": "10014",
                "country": "US"
            },
            "employer": "Whole Goods",
            "employer_address": {
                "line1": "852 North W St",
                "line2": null,
                "city": "New York",
                "state": "NY",
                "postal_code": "10014",
                "country": "US"
            },
            "status": "active",
            "employment_type": "full-time",
            "job_title": "Store Manager",
            "base_pay": {
                "amount": "75372.62",
                "currency": "USD",
                "period": "annual"
            },
            "pay_cycle": "monthly",
            "start_date": "2020-08-28",
            "original_hire_date": "2020-08-28",
            "end_date": null,
            "length_of_work": {
                "years": "2",
                "months": "6"
            },
            "last_pay_period_end_date": "2023-03-22",
            "last_paystub_date": "2023-03-24",
            "income": [
                {
                    "period": "2023",
                    "currency": "USD",
                    "gross_pay": {
                        "total": "25124.20",
                        "base": "25124.20",
                        "overtime": "0.00",
                        "commission": "0.00",
                        "bonus": "0.00",
                        "other": "0.00"
                    }
                },
                {
                    "period": "2022",
                    "currency": "USD",
                    "gross_pay": {
                        "total": "82866.32",
                        "base": "81653.65",
                        "overtime": "0.00",
                        "commission": "881.09",
                        "bonus": "331.58",
                        "other": "0.00"
                    }
                },
                {
                    "period": "2021",
                    "currency": "USD",
                    "gross_pay": {
                        "total": "87854.76",
                        "base": "81653.65",
                        "overtime": "5774.51",
                        "commission": "426.60",
                        "bonus": "0.00",
                        "other": "0.00"
                    }
                }
            ],
            "monthly_income:": {
                "argyle": {
                    "total": "7102.33",
                    "base": "6902.55",
                    "overtime": "165.94",
                    "bonus": "5.22",
                    "commission": "28.62",
                    "other": "0.00"
                }
            }
        },
        {
            "employment": "c235635a-5c55-2b8e-eba5-d99a326ad7ea",
            "account": "0187c66e-e7e5-811c-b006-2232f00f426a",
            "last_synced_at": "2024-01-08T12:58:06.023Z",
            "source": "Bullseye",
            "first_name": "Bob",
            "last_name": "Jones",
            "full_name": "Bob Jones",
            "birth_date": "1980-10-10",
            "ssn": "522-09-1191",
            "phone_number": "+18009000010",
            "email": "[email protected]",
            "employee_address": {
                "line1": "342 Fence Rd",
                "line2": null,
                "city": "New York",
                "state": "NY",
                "postal_code": "10014",
                "country": "US"
            },
            "employer": "Bullseye",
            "employer_address": {
                "line1": "119 Green Ridge",
                "line2": null,
                "city": "New York",
                "state": "NY",
                "postal_code": "10014",
                "country": "US"
            },
            "status": "active",
            "employment_type": "part-time",
            "job_title": "Clerk",
            "base_pay": {
                "amount": "61030.57",
                "currency": "USD",
                "period": "annual"
            },
            "pay_cycle": "monthly",
            "start_date": "2020-06-29",
            "original_hire_date": "2020-06-29",
            "end_date": null,
            "length_of_work": {
                "years": "2",
                "months": "9"
            },
            "last_pay_period_end_date": "2023-02-23",
            "last_paystub_date": "2023-02-24",
            "income": [
                {
                    "period": "2023",
                    "currency": "USD",
                    "gross_pay": {
                        "total": "20848.92",
                        "base": "20343.52",
                        "overtime": "0.00",
                        "commission": "0.00",
                        "bonus": "505.40",
                        "other": "0.00"
                    }
                },
                {
                    "period": "2022",
                    "currency": "USD",
                    "gross_pay": {
                        "total": "68070.08",
                        "base": "66116.44",
                        "overtime": "0.00",
                        "commission": "777.54",
                        "bonus": "1176.10",
                        "other": "0.00"
                    }
                },
                {
                    "period": "2021",
                    "currency": "USD",
                    "gross_pay": {
                        "total": "68378.52",
                        "base": "66116.44",
                        "overtime": "0.00",
                        "commission": "641.94",
                        "bonus": "1620.14",
                        "other": "0.00"
                    }
                }
            ],
            "monthly_income": {
                "argyle": {
                    "total": "5683.51",
                    "base": "5512.92",
                    "overtime": "0.00",
                    "bonus": "119.51",
                    "commission": "51.08",
                    "other": "0.00"
                }
            }
        }
    ]
}

​
Encompass

Visit the Day 1 Certainty® and AIM section of our Encompass Guide for more information on submitting reference numbers through the Encompass® by ICE Mortgage Technology® platform.

​
Empower

Visit the Day 1 Certainty® and AIM section of our Empower Guide for more information on submitting reference numbers through the Empower® LOS platform. Reference numbers can be submitted for Day 1 Certainty® through the MeridianLink® LOS platform.
  1. Copy a Reference # from an Argyle verification report.
  2. Within the MeridianLink® LOS:
    1. Open the Services dropdown in the left sidebar and select Submit to DO / DU.
    2. In the DU Validation section:
      1. Select Argyle as the 3rd Party Data Provider Name.
      2. Insert the Reference # from Argyle’s report into the Reference Number field.
    3. Submit the loan to Fannie Mae’s DU® validation service.

​

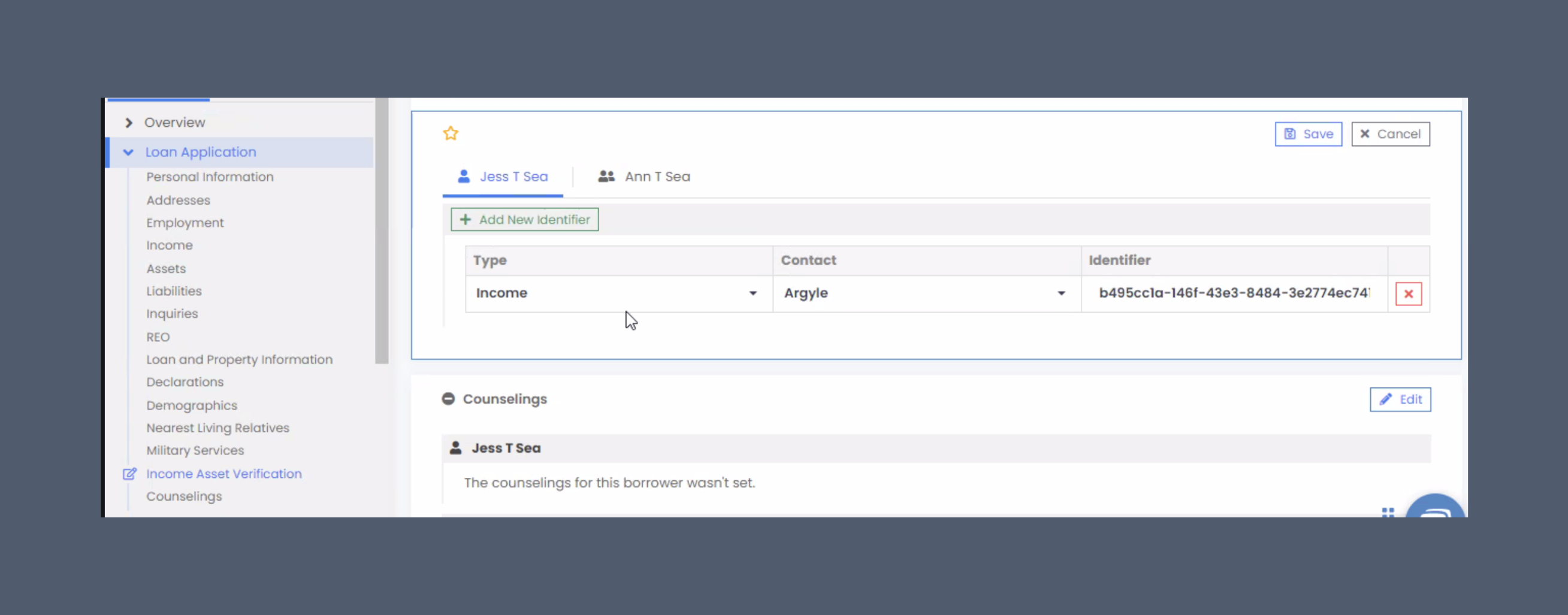

LendingPad

  1. Select Income Asset Verification from the Loan Application dropdown.
  2. Select Income as the Type.
  3. Select Argyle as the Contact.
  4. Copy a Reference # from an Argyle verification report..
  5. Paste the Reference # as the Identifier.
  6. Submit the loan file for AUS as normal.
Argyle can be submitted through LendingPad AUS.

​
Byte

BytePro’s Fannie Mae and Freddie Mac LPA interfaces let you reissue verifications via Verification Services. Argyle can be submitted through Byte LOS.
  1. Select Interfaces > Fannie Mae or Interfaces > Freddie Mac
  2. Select either:
    • DO or DU XIS for Fannie Mae
    • LPA System-to-System for Freddie Mac
  3. Proceed to Verification Services.
  4. On the Edit Service Order screen:
    • Select your Vendor Type
      • Use Other + Argyle for Fannie Mae
      • Use Other + ARGL for Freddie Mac
    • Select your Verification Type
      • Select Income
    • Input the Reference Number
      • Include the borrower’s Social Security Number before Argyle’s Reference Number
      • Use a colon : separator:
        • For example: 1112224444:018d226-945d-64c6-1a0e-c10ab893707e
      • Values are case-sensitive and may include non-alphanumeric characters such as hyphens
